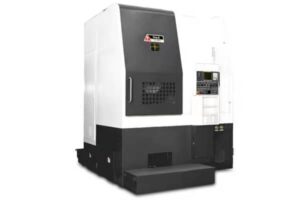

CNC Vertical Lathe In Operation

• As an investment casting foundry continuously investing in and upgrading our machining capability, our newly installed CNC Vertical Lathe has been put into application since the beginning of 2022. With this new capital investment in operation, we managed successfully to redesign machining procedures for parts that were formerly machined on our 3&4 axis Machining Centres. Thus, more machining capacities are released and are given way for our running orders. A more direct pricing on our investment cast turned parts with heavy radial loads are realized. This new machinery delivers us also the below machining and technical progress for our investment cast parts that require value-adding processing: Avoiding tendency caused by inertia against oval deformation in the radial direction. High and Stable Machining precision achieved through firm clamping between part and machining jig reinforced by the workpiece’s self-weight. Compatibility with Large, thin, Heavy and Workpiece of irregular shapes. Simplicity to clamp workpiece of irregular shapes reduces the need and cost to make machining jigs.

Exemplary Workpieces

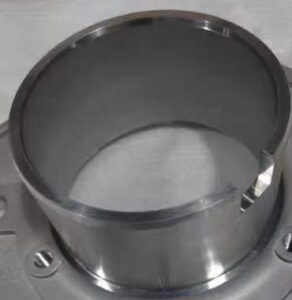

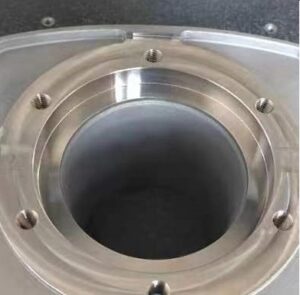

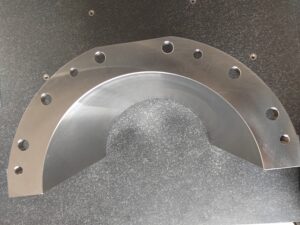

Sealing surface Vertically turned	Sealing surface Vertically turned	Connection Bridge Vertically Turned

Equipment configuration

Parameters	Unit	Figure
Max. work-piece weight	KG	7000
Largest Rotating Diameter	mm	ø 750
Largest Turning Diameter	mm	ø 550
Main Shaft Rotating Speed	rpm	50~2000
